MIG Welding Unit
Product group code: 1693320
KEMPPI KEMPACT PULSE2530

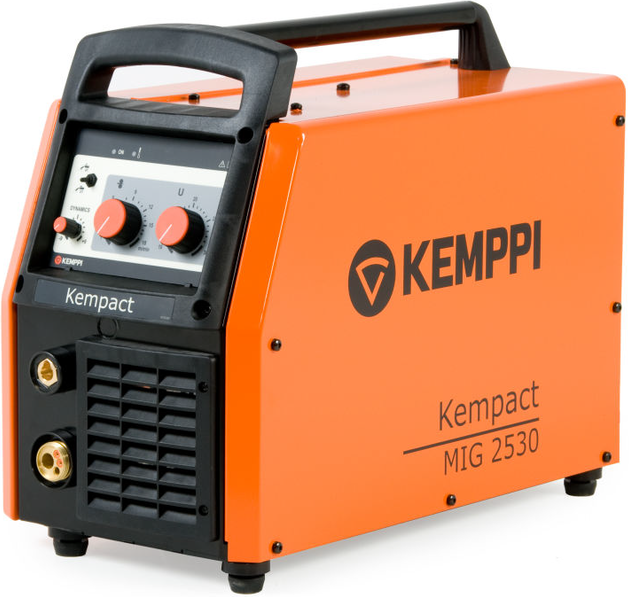

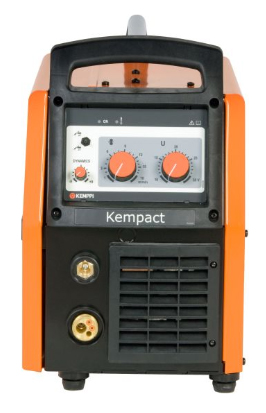

The Kempact MIG 2530 is compact MIG inverter suitable for repair and installation use, and for light and medium industrial use. The power source and the wire feeding mechanism are contained in the device. The power regulation of the power source is implemented with IGBT transistors operating at a frequency of approximately 30 kHz.
The delivery package includes a grounding cable (35 mm², 5 m), a gas hose (6 m), and a MIG torch. Duty cycle (ED) 40% at 250 A / 26.5 V. Suitable wires for the machine: (Fe solid wire): 0.6–1.0 mm, (Fe flux-cored wire): 0.6–1.2 mm, (Al): 0.6–1.2 mm, (CuSi): 0.6–1.0 mm.
| Drive or power source | 400 V |
| ED 40% | 250 A |
| Filler range | 0,6-0,6 mm |
| Weight | 20 kg |
| Length | 580 mm |
| Width | 280 mm |
| Height | 440 mm |
| Filler min diameter | 0,6 mm |
| Filler max diameter | 1,2 mm |
Equipment that can cause severe damage due to its rotating / cutting machines and blades. We therefore recommend that the user be extra cautious to reduce risk of injury.
We recommend using protective glasses to reduce the risk of injury.
