Single Drum Roller 12 ton
Product group code: 2293830

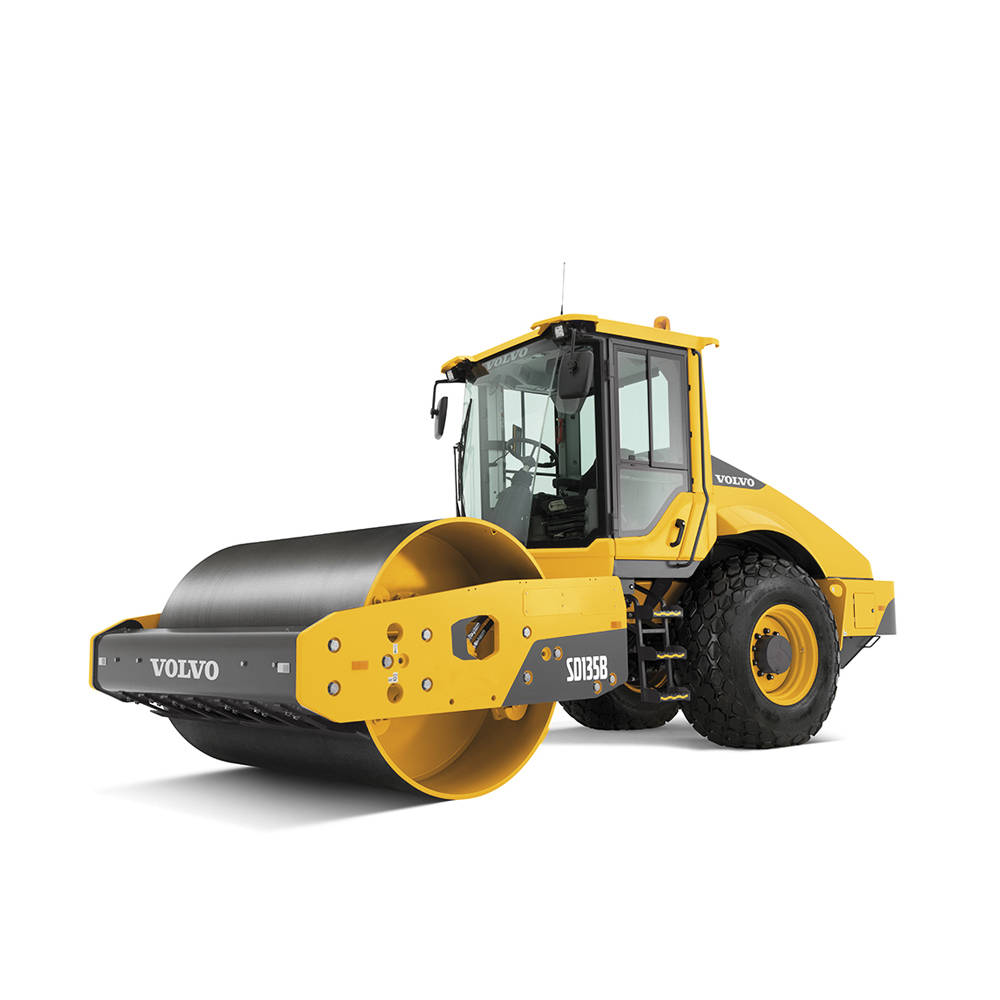

VOLVO SD135B
VOLVO SD135B is a high-performance 12.6-ton single drum soil compactor designed for efficient compaction of soils, aggregates, and foundation layers. Its powerful compaction system and versatile operating characteristics make it ideal for road construction, site preparation, and large-scale infrastructure projects.
The machine features a 2.13 m smooth drum and delivers up to 281 kN of centrifugal force, ensuring excellent compaction performance and productivity. An ergonomic operator station, intuitive controls, and excellent visibility contribute to safe and efficient operation.
Powered by a 110 kW Volvo D4 engine, the SD135B incorporates Adaptive Power technology, which automatically adjusts engine and hydraulic performance to match job site requirements, improving fuel efficiency and overall machine performance. Multiple frequency and amplitude settings provide flexibility for a wide range of soil and compaction applications.
| Weight | 12600 kg |
| Static linear load | 36 kg/cm |
| Drum weight | 7,6 t |
| Drum width | 2,134 m |
| Frequency | 33,8 Hz |
| Sound pressure | 105 dB(A) |
| Drive or power source | Diesel |
| Max lift thickness (Base/Subbase) | 0,5 m |
| Max lift thickness (Sand/Gravel) | 0,6 m |
| Max lift thickness (Silt) | 0,4 m |
| Max lift thickness (Rockfill) | 1 m |
| Max lift thickness (Clay) | 0,25 m |
| Power | 110 kW |
| Speed | 9,9 km/h |
| Fuel tank capacity | 130 l |

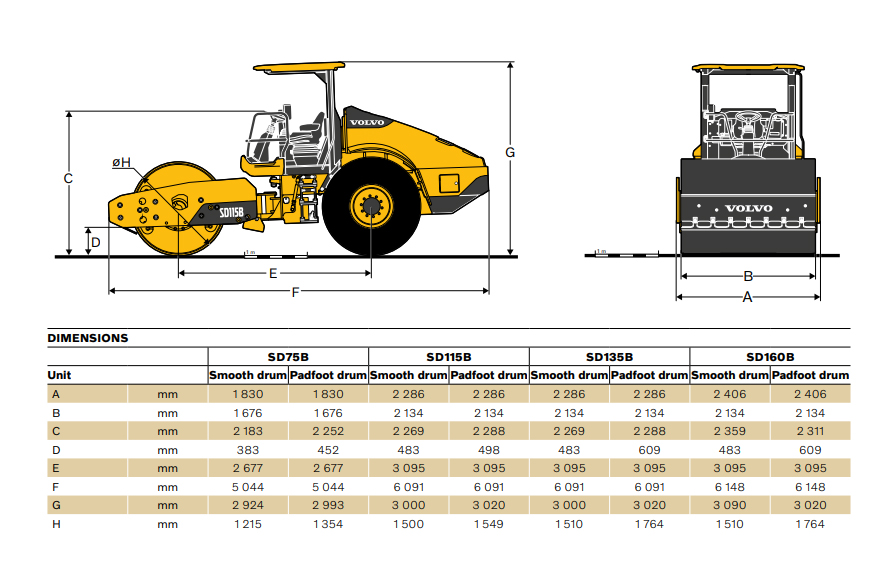

| Length | 6,091 m |
| Width | 2,286 m |
| Height | 3 m |
We recommend using ear protection to reduce the risk of injury. Prolonged exposure to loud noise can cause hearing damage.
We recommend that the user wears protective shoes to reduce risks of injury.
