Electric pipe bender

MACKMA BM48

1874910

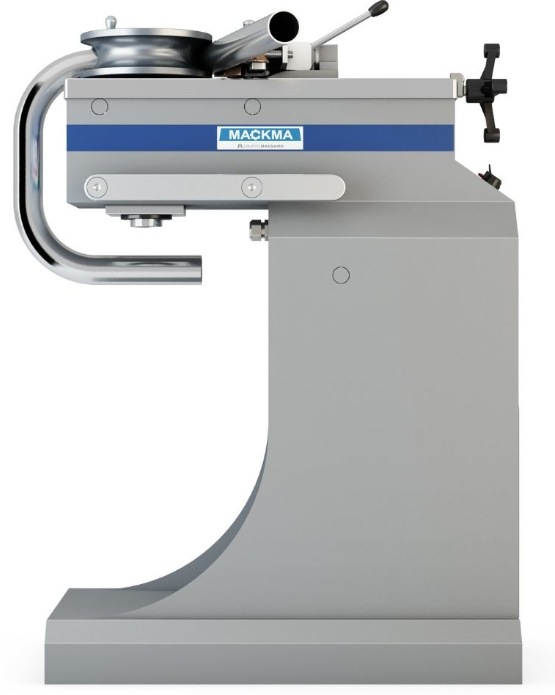

The BM48 pipe ad profile bender is the only non-mandrel pipe bender that allows for both left and right bending with particular tools we manufacture.

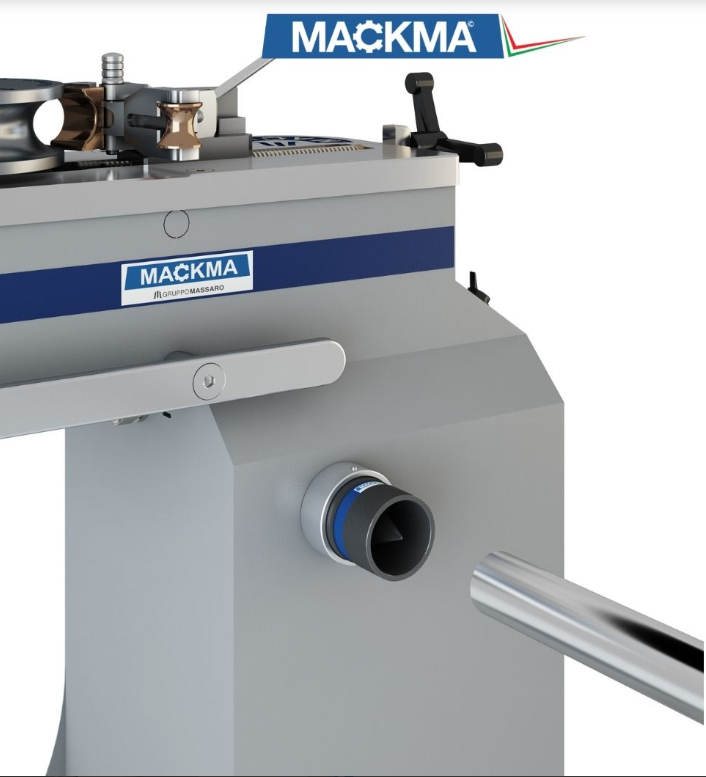

Another feature that makes the BM48 pipe bender unique is the connection that allows coupling the tapered internal/external pipe deburring tool.
Its innovative design allows you to bend pipes with a diameter up to 48 mm for a 3,5 mm thickness with a 3xOD minimum radius and a 250 mm maximum radius. All this ensures high repeatability for even the most demanding markets.
The curvature axis is inverter controlled; therefore, the rotational speed ranges between 2 revs/min and 3 revs/min. This is also possible thanks to the potentiometer installed, which allows the operator to choose the rotational speed that best suits the pipe to be bended.

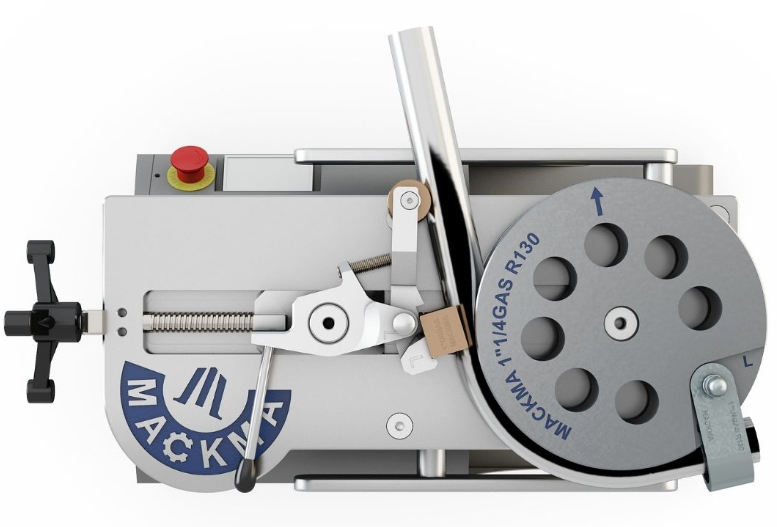

The cantilever head allows the creation of complex figures, which require the pipe to pass under the head.
The special shaft system allows the machine to be interfaced with the tools of competition machinery currently available on the market. The inverter controlled motor minimises power consumption.

Price, VAT
122,74 € 154,04 € / day
1 373,00 € 1 723,12 € / month
Price includes Ramiturva service
You can see your contract prices in RamiSmart

Accessories

Drive or power source 400 V
Pipe min-max diameter 21,34-48,26 mm
Gross weight 100 kg
Length 970 mm
Width 700 mm
Height 440 mm
Pipe min diameter 21,34 mm
Pipe max diameter 48,26 mm
