Battery Powered Mast Lift with Jib 7,9 m
MANITOU 100VJR
2613720

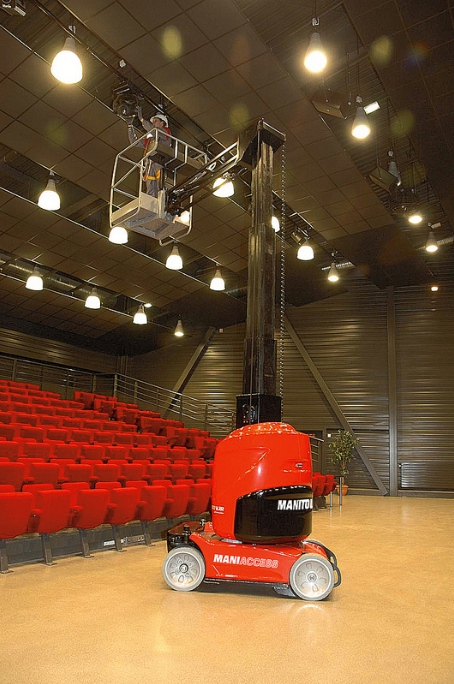

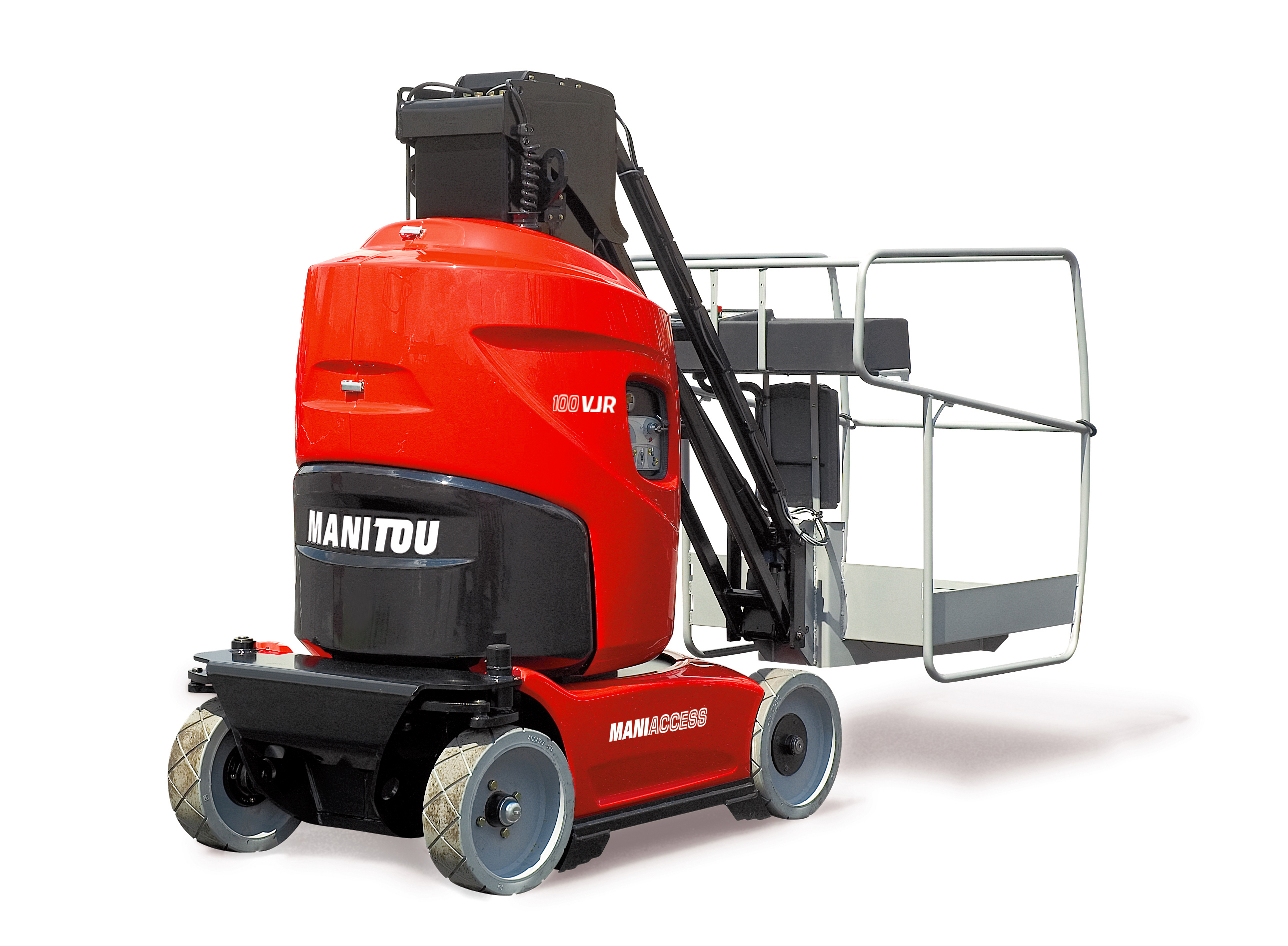

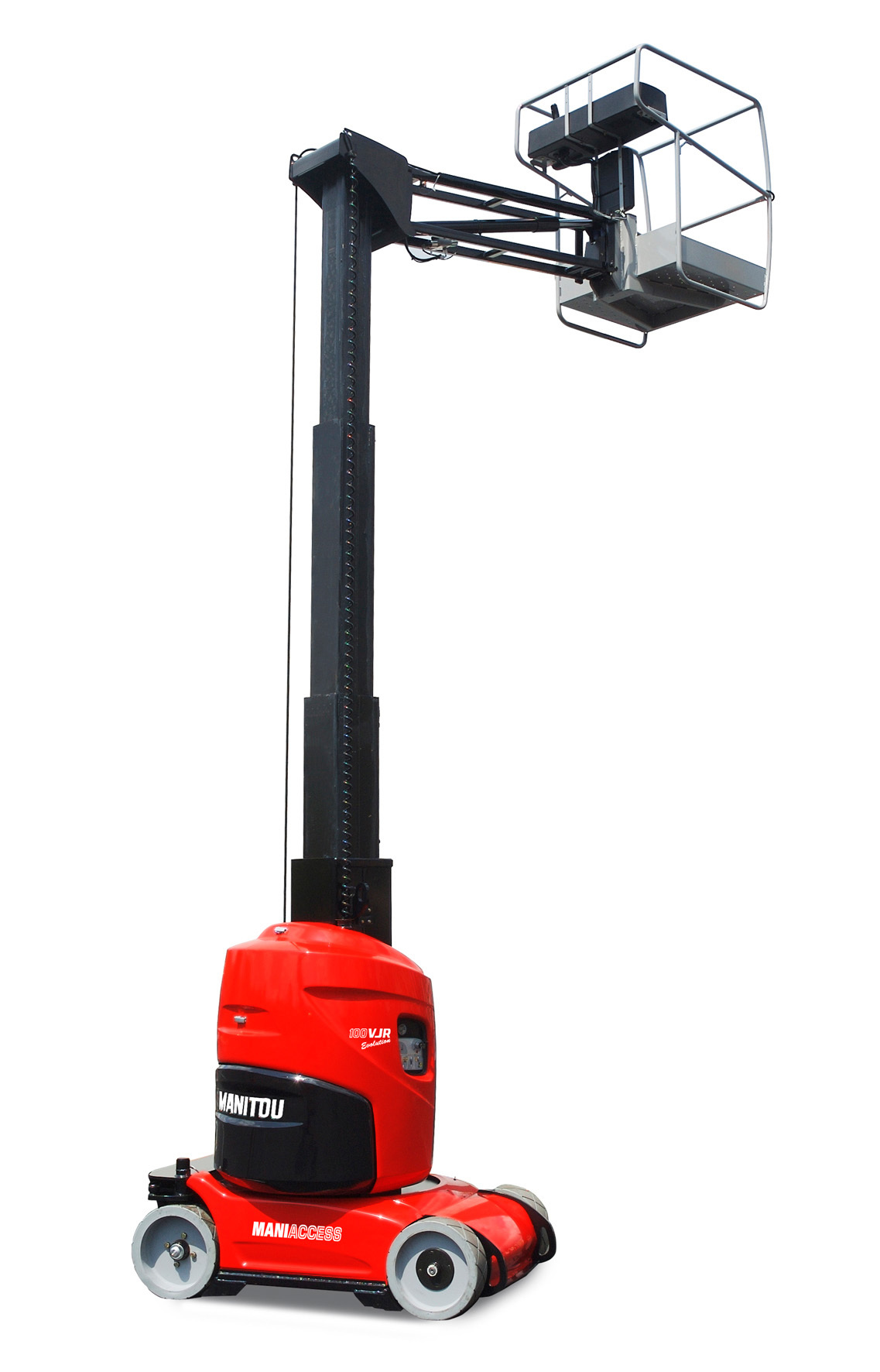

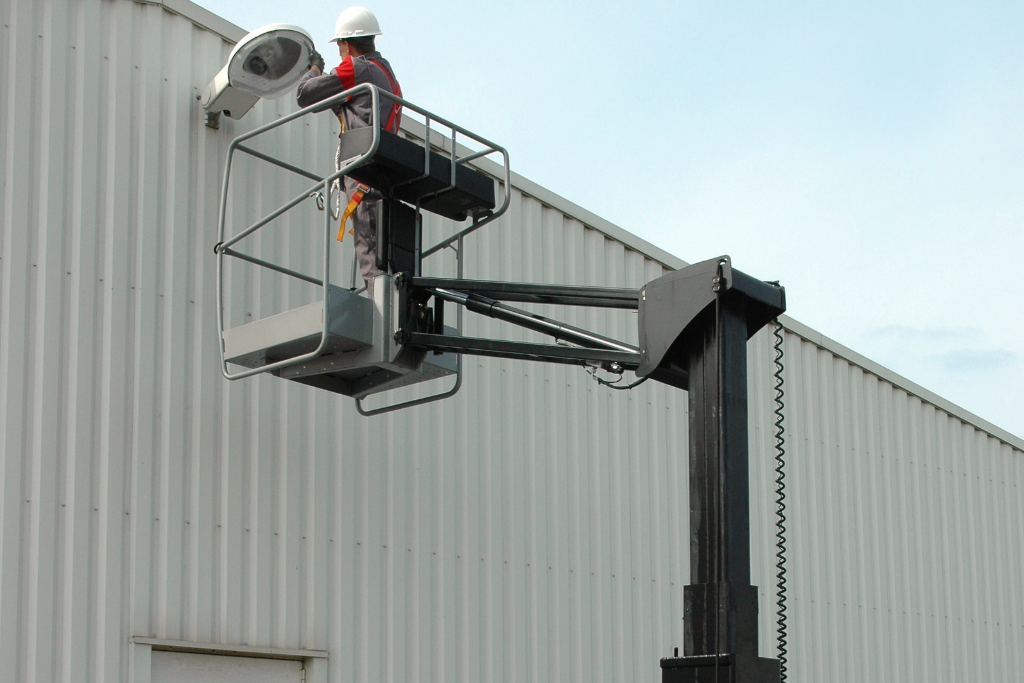

Compact and easy to handle, this model consists of a vertical telescopic mast, an electric engine and a perforated basket meeting all your industrial requirements. The turret system rotates continuously at 360 degrees providing great flexibility to operators, and the machine compactness allows easy travel through a majority of industrial doors. The 100 VJR is ideal to work in multiple applications, thanks to the advantageous features of this vertical mast design.
In our selection you will find a wide selection of low-emission rental machines. We facilitate the monitoring of emissions and the transition to the use of renewable energy in machine rental. You can recognize all our low-emission machines by the RamiGreen mark.
Accessories
Fall Protection Clamp
Body Harness P-30mX
Harness Miller Titan 2-point

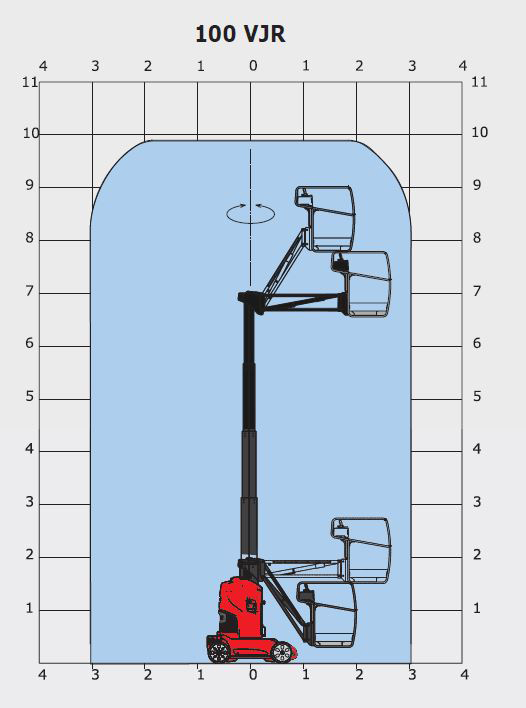

Platform height | 7,9 m |
Weight | 2650 kg |
Platform dimensions | x m |
Horizontal outreach | 3,15 m |
Max load weight | 200 kg |
Working height | 9,9 m |
Tyres | Non-marking |
Drive or power source | Battery |
Ground clearance | 100 mm |
Up and over height | 6,57 m |
Jib length | 1,45 m |
Transport length | 2,82 m |
Transport width | 0,99 m |
Transport height | 1,99 m |
Length | 2,82 m |
Width | 0,99 m |
Height | 1,99 m |
Basket length | 0,9 m |
Basket width | 0,75 m |
Safety harnesses are always recommended when there is a risk of falling from the platform. The use of safety harnesses is mandatory in telescopic and articulated boom lifts.
We recommend that the user wears protective shoes to reduce risks of injury.
