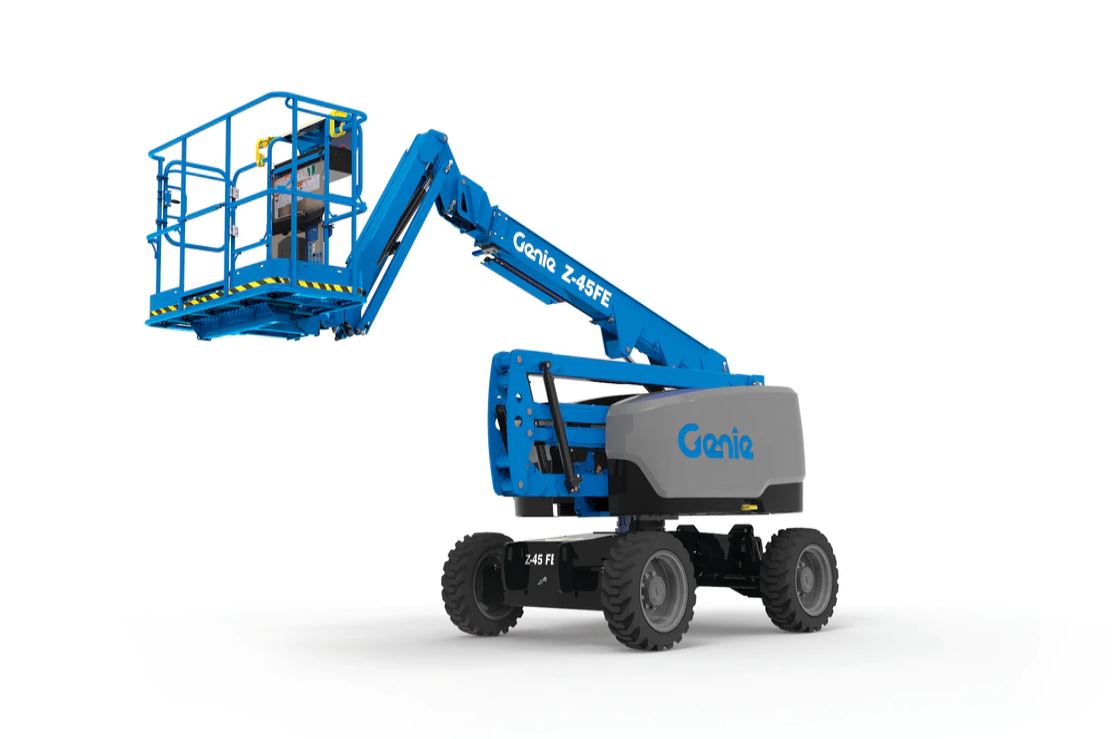

Hybrid Articulating Boom Lift 13,92 m
GENIE Z45FE
2654245
The Genie Z-45 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.
Features:
- 4WD and 45% gradeability for superior terrainability
- Self-leveling platform
- High-efficiency AC drive system for enhanced driving performance and simplified maintenance
- Rough terrain non-marking foam filled tyres
- Full-time active oscillating axle helps maintain traction on rough terrain
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
In our selection you will find a wide selection of low-emission rental machines. We facilitate the monitoring of emissions and the transition to the use of renewable energy in machine rental. You can recognize all our low-emission machines by the RamiGreen mark.
Accessories
Harness Miller Titan 2-point
Body Harness
Body Harness P-30mX
Platform height | 13,92 m |
Horizontal outreach | 6,94 m |
Weight | 6577 kg |
Max load weight | 300 kg |
Platform dimensions | 0,76x1,83 m |
Max driving height | 13,92 m |
Working height | 15,92 m |
Tyres | Non-marking |
Up and over height | 7,5 m |
Drive or power source | Battery/Diesel |
Fuel tank capacity | 64,35 l |
Power | 10 kW |
Wheel drive / steering | 4WD/2WS |
Platform length | 0,76 m |
Platform width | 1,83 m |
Transport length | 5,87 m |
Transport width | 2,29 m |
Transport height | 2,29 m |
Length | 5,87 m |
Width | 2,29 m |
Height | 2,29 m |
Safety harnesses are always recommended when there is a risk of falling from the platform. The use of safety harnesses is mandatory in telescopic and articulated boom lifts.
We recommend that the user wears protective shoes to reduce risks of injury.
